Product No.:
CS6.2-48TD-440
Nominal Power:
440 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-48TD-440Nominal Power:
440 WpCell Type:
TOPCon

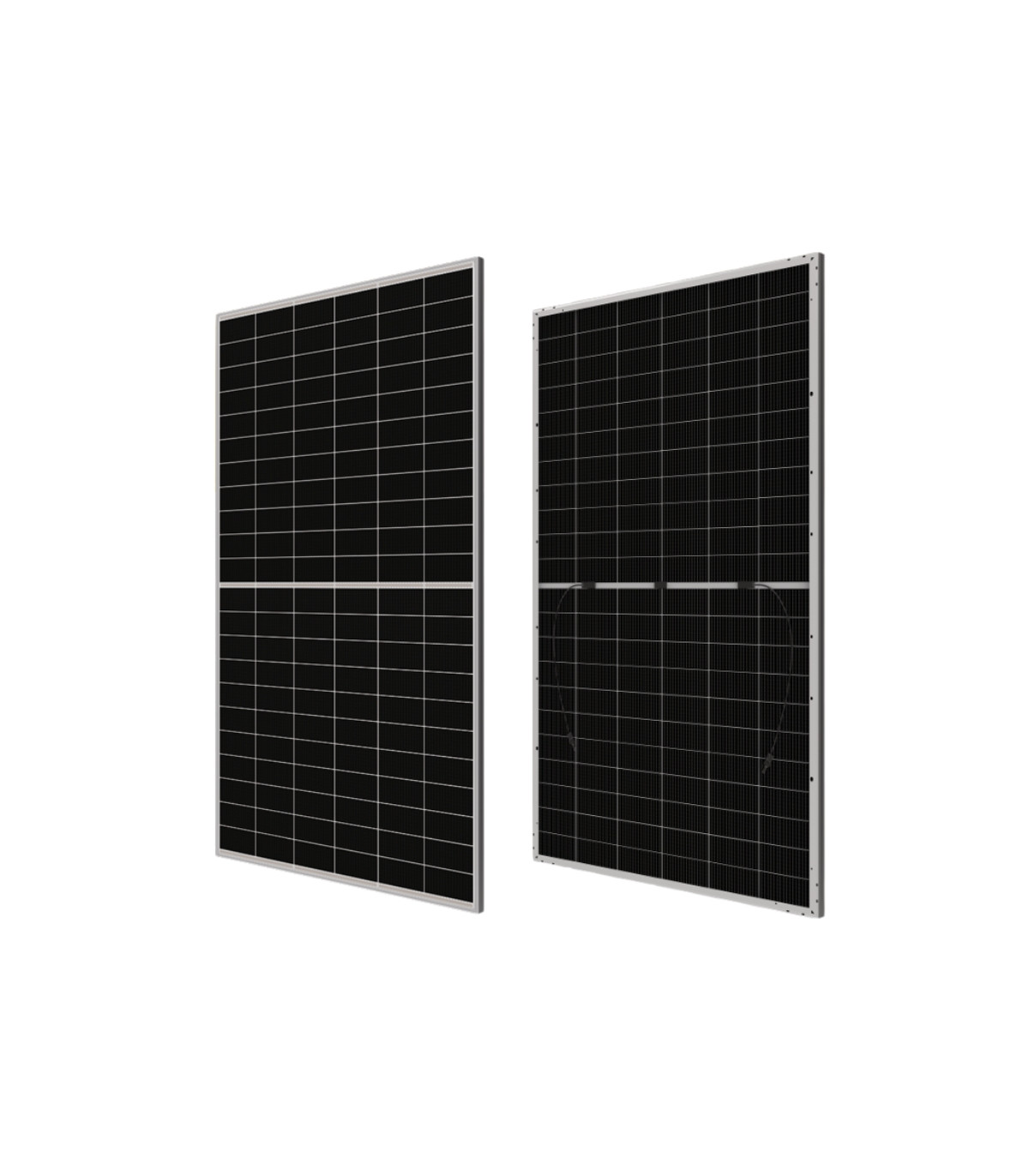

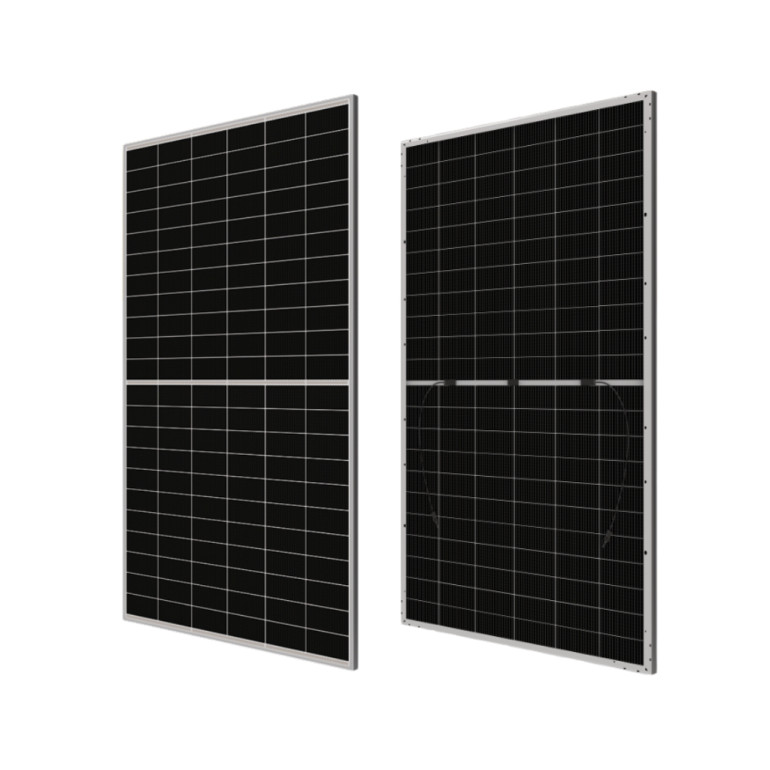

TOPBiHiKu6 Anti-Hail CS6.2-66TB-600
Product No.:
CS6.2-66TB-600
Nominal Power:
600 Wp
Cell Type:
TOPCon
For bulk orders or additional documents (eg. installation manuals, testing reports, or certification files), please contact our sales team.
CS6.2-66TB-600
Data sheet
- Nominal Power
- 600 Wp
- Cell Type
- TOPCon
- Cell Arangement
- 132 [2 x (11 x 6) ]
- Dimensions
- 2382 ˣ 1134 ˣ 35 mm (93.8 ˣ 44.6 ˣ 1.38 in)
- Weight
- 40.6 kg (89.5 lbs)
- Front Glass
- 2.5 mm tempered glass with anti-reflecti ve coating
- Back Glass
- 2.5 mm tempered glass
- Frame
- Anodized aluminium alloy
- J-Box
- IP68, 3 bypass diodes
- Cable
- 4 mm² (IEC), 12 AWG (UL)
- Cable Length (Including Connector)
- 300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) or customized length*
- Connector
- T6 or MC4-EVO2 or MC4-EVO2A
- Per Pallet
- 31 pieces
- Per Container (40' HQ)
- 558 pieces or 434 pieces (only for US & Canada)
Canadian Solar
- 12 Years of Industry Leading Product Warranty on Materials and Workmanship*
- 30 Years of Linear Power Performance Warranty*
- 1st year power degradation no more than 1%
- Subsequent annual power degradation no more than 0.4%
*According to the applicable Canadian Solar Limited Warranty Statement.
More Power
- Module power up to 630 W, Module efficiency up to 23.3 %
- Up to 85% Power Bifaciality, more power from the back side
- Excellent anti-LeTID & anti-PID performance. Low power degradation, high energy yield
- Lower temperature coefficient (Pmax): -0.29%/°C, increases energy yield in hot climate
- Lower LCOE & system cost
More Reliable
- Tested up to ice ball of 55 mm diameter according to IEC 61215 standard
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
Management System Certificates*
- ISO 9001: 2015 / Quality management system
- ISO 14001: 2015 / Standards for environmental management system
- ISO 45001: 2018 / International standards for occupational health & safety
- IEC 62941: 2019 / Photovoltaic module manufacturing quality system
Product Certificates*
- IEC 61215 / IEC 61730
- UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68
- Take-e-way
* The specific certificates applicable to different module types and markets will vary, and therefore not all of the certifications listed herein will simultaneously apply to the products you order or use. Please contact your local Canadian Solar sales representative to confirm the specific certificates available for your Product and applicable in the regions in which the products will be used.
About the Brand
CSI Solar Co., Ltd. is committed to providing high quality solar photovoltaic modules, solar energy and battery storage solutions to customers. The company was recognized as the No. 1 module supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey. Over the past 23 years, it has successfully delivered over 133 GW of premium-quality solar modules across the world.
Electrical Data | STC*
Nominal Max. Power (Pmax)
600 W
Opt. Operating Voltage (Vmp)
40.4 V
Opt. Operating Current (Imp)
14.86 A
Open Circuit Voltage (Voc)
47.6 V
Short Circuit Current (Isc)
15.85 A
Module Efficiency
22.2%
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell tempe rature of 25°C.
** Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.
Electrical Data
Operating Temperature
-40°C ~ +85°C
Max. System Voltage
1500V (IEC/UL)
Module Fire Performance
TYPE 30 (UL 61730) or CLASS A (IEC61730)
Max. Series Fuse Rating
35 A
Protection Class
Class II
Power Tolerance
0 ~ + 10 W
Power Bifaciality*
80 %
* Power Bifaciality = Pmaxrear / Pmaxfront , both Pmaxrear and Pmaxfront are tested under STC, Bifaciality Tolerance: ± 5 %
Electrical Data | NMOT*
Nominal Max. Power (Pmax)
454 W
Opt. Operating Voltage (Vmp)
38.2 V
Opt. Operating Current (Imp)
11.88 A
Open Circuit Voltage (Voc)
45.1 V
Short Circuit Current (Isc)
12.77 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s
Temperature Characteristics
Temperature Coefficient (Pmax)
-0.29 % / °C
Temperature Coefficient (Voc)
-0.25 % / °C
Temperature Coefficient (Isc)
0.045 % / °C
Nominal Module Operating Temperature
41 ± 3°C
* The specifications and key features contained in this datasheet may deviate slightly from our actual products due to the on-going innovation and product enhancement. CSI Solar Co., Ltd. reserves the right to make necessary adjustment to the information described herein at any time without further notice. Please be kindly advised that PV modules should be handled and installed by qualified people who have professional skills and please carefully read the safety and installation instructions before using our PV modules.
Product No.:
CS6.2-66TB-620
Nominal Power:
620 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-66TB-620Nominal Power:
620 WpCell Type:
TOPCon
Product No.:
CS6.2-66TB-615
Nominal Power:
615 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-66TB-615Nominal Power:
615 WpCell Type:
TOPCon
Product No.:
CS6.2-66TB-610
Nominal Power:
610 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-66TB-610Nominal Power:
610 WpCell Type:
TOPCon
Product No.:
CS6.2-66TB-605
Nominal Power:
605 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-66TB-605Nominal Power:
605 WpCell Type:
TOPCon
Product No.:
CS6.2-48TD-460
Nominal Power:
460 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-48TD-460Nominal Power:
460 WpCell Type:
TOPCon
Product No.:
CS6.2-48TD-455
Nominal Power:
455 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-48TD-455Nominal Power:
455 WpCell Type:
TOPCon
Product No.:
CS6.2-48TD-450
Nominal Power:
450 Wp
Cell Type:
TOPCon
Product No.:
CS6.2-48TD-450Nominal Power:
450 WpCell Type:
TOPCon
